Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
Battery Type: Lead Acid/Vented/ Sealed / Gel / NiCd /AGM/ Lithium battery
Battery Voltage: 12V 24V 36V 48V Auto
Brand Name: PowMr
Certification: CE
Dispaly: Backlight LCD Controller
Fearture 1: MPPT 60A Solar controller
Fearture 2: 60A MPPT Solar Charge
Hign-concerned Chemical: None

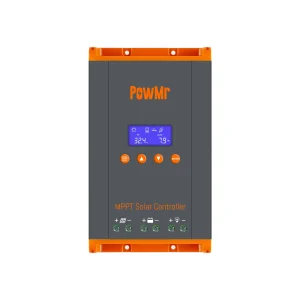

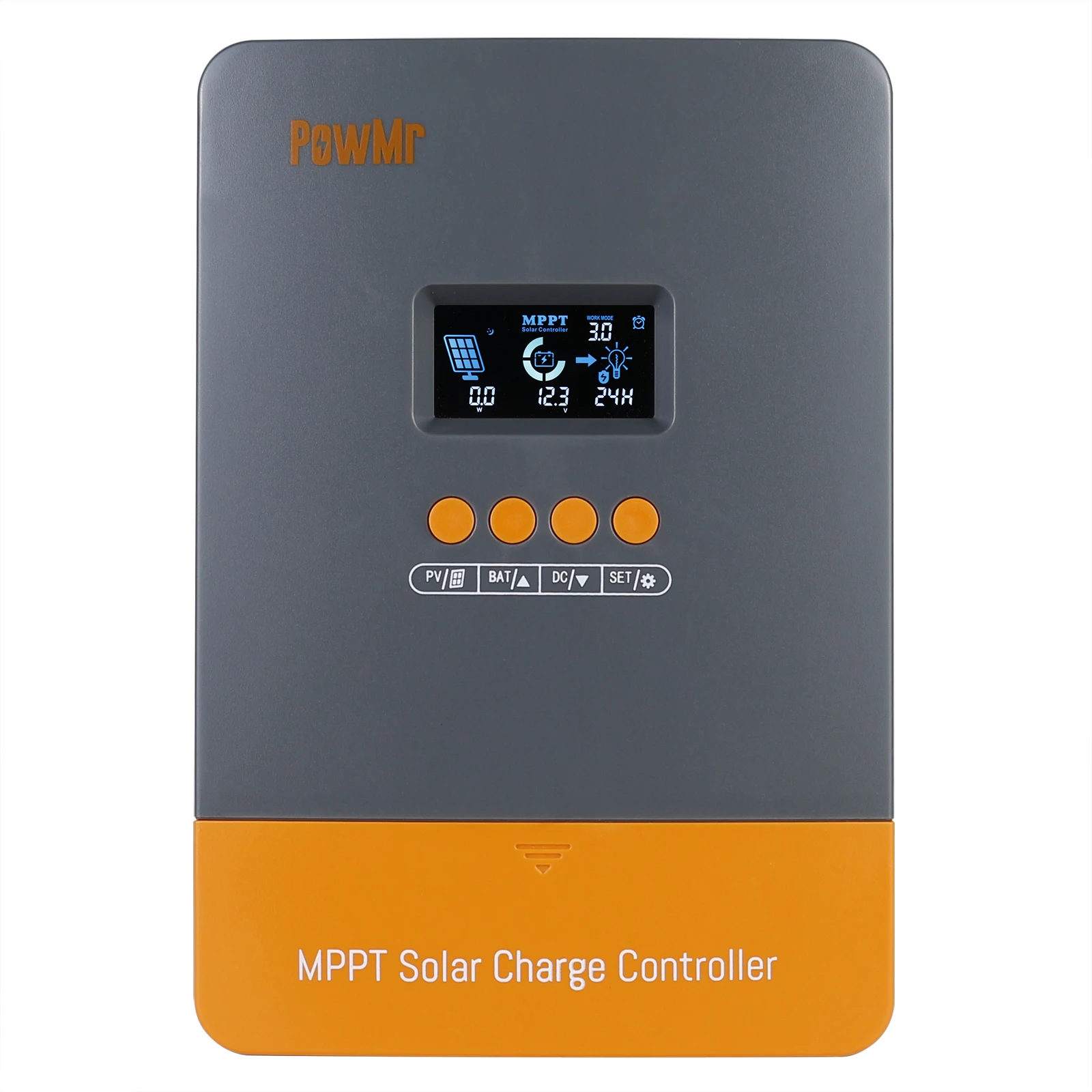

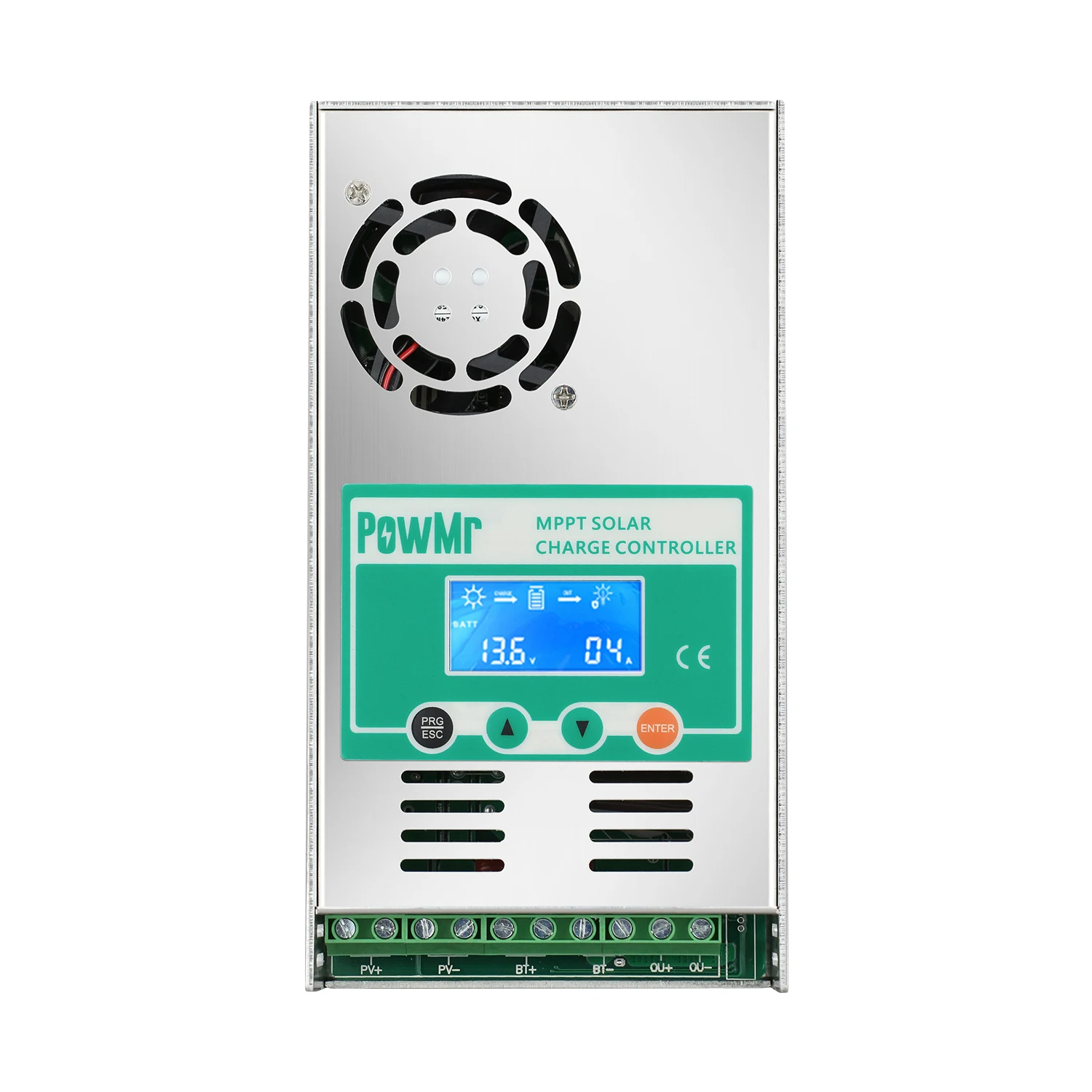

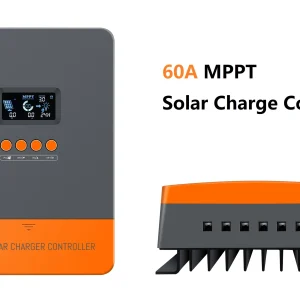

Item: PowMr MPPT Solar Charge Controller 60A 50A 40A 30A
Max PV Voltage: 150V
Maximum Current: 60A/40A 30A/20A
Model Number: MPPT 60A/40A 30A/20A
Origin: Mainland China
Product: MPPT Solar Regulator
Type 1: MPPT solar charger
Type 2: MPPT solar controller
Type 3: Battery Charger
is_customized: Yes
|
Model |
20A |
30A |
40A |
60A Standard |
60A New |
60A Pro |
|
Max Open Voltage of PV Module
|
60V |
75V |
100V |
160Vdc
|
160Vdc
|
160Vdc
|
|
Input Voltage Range:
For 12V System
For 24V System
For 36V System
For 48V System
|
20V~80V
37V~105V
50V~160V
72V~160V
|
|||||
|
System Voltage
|
12V/24V |
12V/24V/36V/48V
|
||||
|
Max. Input Power
|
260W(12V);
520W (24V);
|
390W(12V);
780W (24V);
|
520W(12V);
1040W (24V);
|
720W(12V);
1440W (24V);
2100W 36V);
2800W (48V).
|
||
|
Charging Technology
|
MPPT |
|||||
|
Voltage range of battery |
8-32V |
DC9V~DC15V (12V System)
DC18V~DC29V (24V System)
DC30V~DC39V (36V System)
DC40V~DC60V (48V System)
|
||||
|
Battery Type |
User default, Sealed, Flooded, GEL, LiFePO4 |
|||||
|
Parallel Fuction |
No |
Yes, Up to 12 Units |
||||
|
Charging Algorithm
|
3 stages
|
|||||
| Color | MPPT 60A Pro, MPPT 40A, MPPT 30A, MPPT 60A New, MPPT 60A Standard, MPPT 20A |
|---|---|
| Ships From | GERMANY, brazil, CHINA, United States, Mexico |
